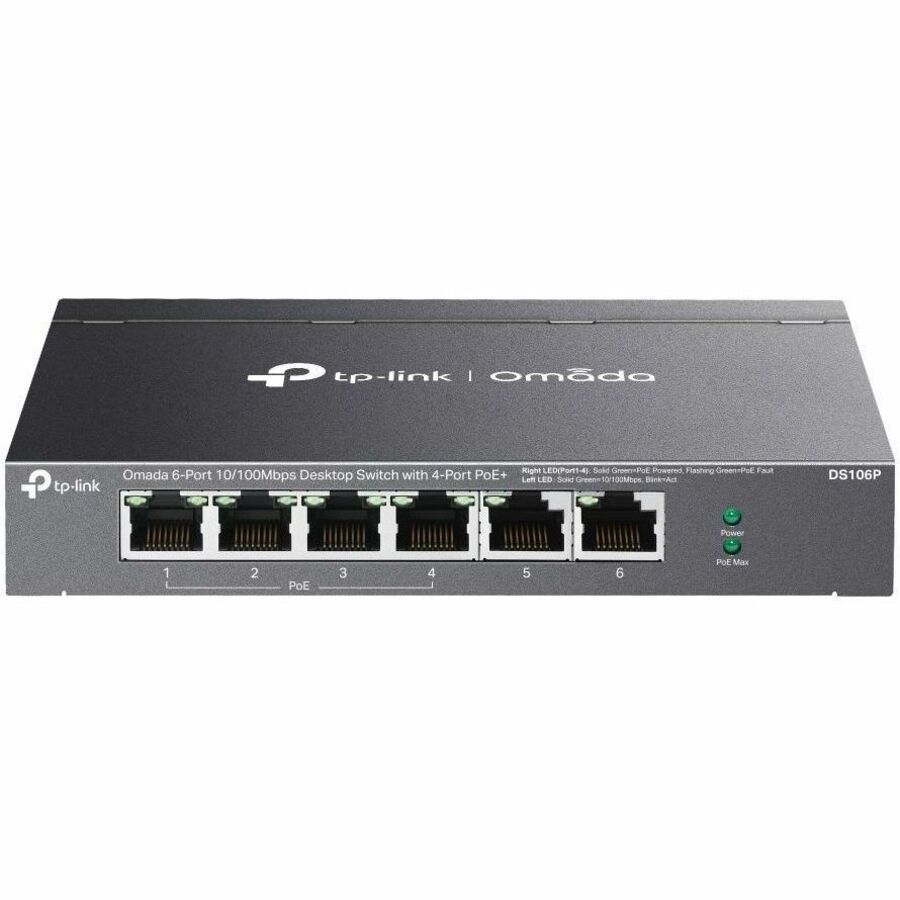

TP-Link Omada 6-Port 10/100Mbps Unmanaged Desktop Switch with 4-Port PoE+
10 Ports - Gigabit Ethernet, Fast Ethernet - 10/100/1000Base-T, 10/100Base-T - 2 Layer Supported - 2.52 W Power Consumption - 67 W PoE Budget - Twisted Pair - PoE Ports - Desktop, Wall Mountable
About This Product
Overview
- 67 W PoE Budget
- Long-Range PoE+ (250m)
- One-Click Priority Mode
- PoE Auto Recovery
- Desktop or Wall-Mounting
- Plug and Play
- Fanless Design for Silent Operation
- Durable Metal Casing
Power over Ethernet, Flexible Network Deployment
Compliant with the IEEE 802.3af/at PoE standards, the switch supports a total PoE power budget of 67 W with 30 W max per PoE+ port. When total power consumption exceeds 67 W, the intelligent power management will cut the lower priority ports power to protect devices from damage.
Instantaneous Multi-mode Toggles | Extend Mode | Up to 250m Transmissions
With extend mode, the PoE transmission distance reaches up to 250 m -perfect for IP Camera deployment in large areas.
Priority Mode | One-click Port Priority
Priority mode guarantees the quality of sensitive applications like video and voice in critical business areas by prioritizing the data of ports.
Recovery Mode | PoE Auto Recovery
Recovery mode helps automatically detect and reboot PD devices, such as cameras and APs, when they fall offline or go unresponsive-all without needing manual monitoring and restarts.
- 6× 10/100 Mbps RJ45 ports
- 4× PoE+ ports transfer data and power on individual cables
- Works with IEEE 802.3af/at compliant PDs
- Supports PoE Power up to 30 W for each PoE port
- Supports PoE Power up to 67 W for all PoE ports
- Up to 250m (820ft) data and power transmitting range under Extend Mode
- Priority Mode ensures high priority of ports 1-2 to guarantee the quality of sensitive application
- PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices
- Plug and Play. No configuration or central management required
Quick Specifications
- Product Line
- Omada
- Product Model
- DS106P
- Product Type
- Ethernet Switch
- Features
- Plug and Play Fanless
- Total Number of Network Ports
- 10
- Network (RJ-45)
- Yes
- Port/Expansion Slot Details
- 6 x Fast Ethernet Network 4 x Fast Ethernet PoE+
- Media Type Supported
- Twisted Pair
