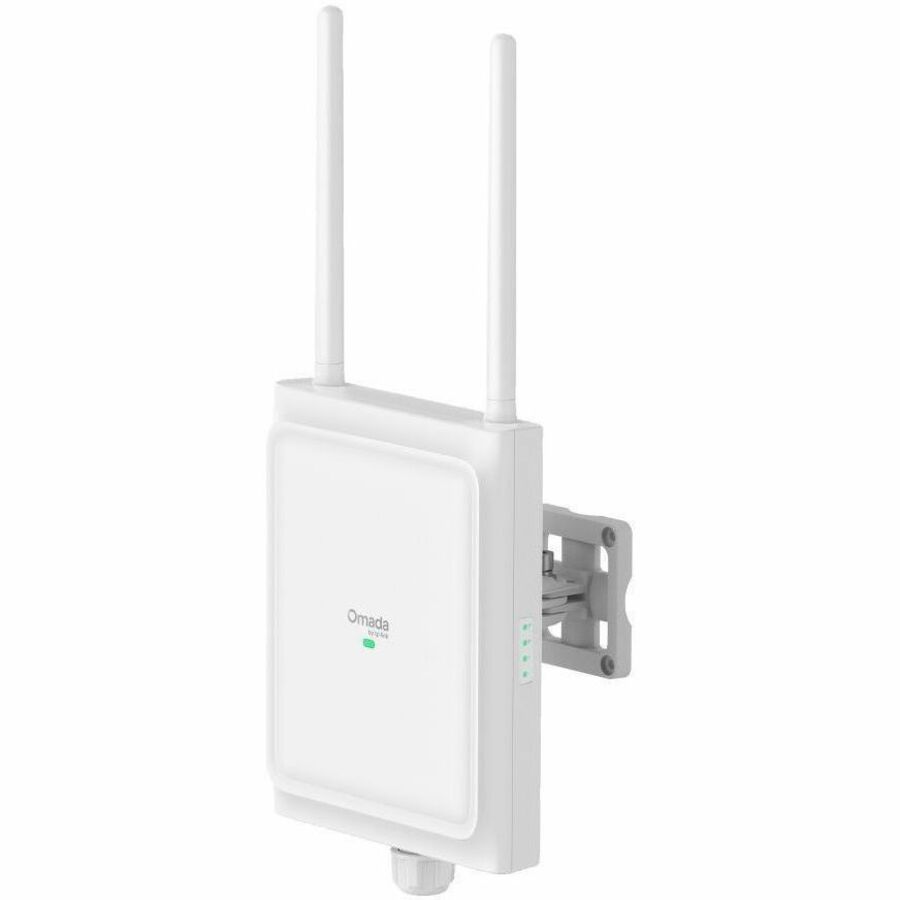

Omada EAP775-Outdoor Tri Band Wi-Fi 7 IEEE 802.11a/b/g/n/ac/ax/be/k/r/v 11 Gbit/s Wireless Access Point - Outdoor - Yes
2.40 GHz, 5 GHz, 6 GHz - Internal/External - 1 x Network (RJ-45) - Ethernet, Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet - Bluetooth 5.2 - Pole-mountable, Wall Mountable - IP68 - 1
About This Product
Overview
Beyond the Spectrum: AFC-Optimized Wi-Fi 7 for Mission-Critical Outdoors
AFC unlocks standard power on 6 GHz, doubling outdoor coverage while ensuring full regulatory compliance-so EAP775-Outdoor delivers maximum performance without interference or complexity.
Tailored Coverage with Different Antenna Modes
Adapt to any environment effortlessly by selecting the antenna type that suits your needs. Whether you require long-distance connectivity or need to cover multiple endpoints, easily switch between omni, directional, or custom antenna configurations with just a few clicks in the software.
Plug-and-Play Automatic Antenna Detection
Automatically detects the attachment and removal of antennas (included) in auto mode and seamlessly switches between the internal and external antennas with zero configuration.
Robust IP68 Weatherproof Design with Anti-UV Coating
The EAP775-Outdoor features an IP68 weatherproof rating and anti-UV coating, protecting it from rain, dust, sun damage, discoloration, and material degradation, while preserving its appearance and integrity for years.
Easy Installation and Deployment
- Wall Mounting
- Horizontal / Vertical Pole Mounting
Seamless Connectivity with Mesh and Roaming
Ensures customers enjoy uninterrupted streaming when moving around by switching clients automatically to the access points with the optimal signal.
Works with Omada SDN for One-Click Setup
Omada SDN allows users to quickly set up the EAP775-Outdoor through automatic device identification and one-click adoption.
Empowering Businesses with Reliable Omada SDN Solutions
Omada's Software-Defined Networking (SDN) solution seamlessly integrates access points (APs), managed switches, and gateways, enabling 100% centralized cloud management for a highly scalable network.
- Tri-Band 6-Stream Outdoor Wi-Fi 7: Delivers high-speed outdoor connectivity up to 11.0 Gbps.
- 6 GHz Band Unlocked by AFC: AFC enables 6 GHz band outdoor uses.
- Plug & Play Automatic Antenna Detection: Automatically detects antenna changes and switches between directional and omnidirectional modes.
- Customizable Directional and Omnidirectional Antennas: Individually adjust antenna modes for specific frequency bands via software to meet the precise requirements of complex, speciallized scenarios.
- True Tri-Band Coverage: 3,229 ft2 (300 m2) omnidirectional and 5,500 ft2 (510 m2) directional recommended coverage.
- 1× 2.5G PoE Port: Flexible PoE deployment reduces costs by delivering power and data over a single Ethernet cable.
- Outdoor-Ready Durability: Features an IP68-rated weatherproof enclosure, anti-UV coating, and 6kV lightning protection.
- Quick and Easy Setup: Features wall/pole mounting with Omada SDN for one-click setup.
- Advanced Features: Centralized management, mesh, and seamless roaming.
Quick Specifications
- Product Model
- EAP775-Outdoor
- Packaged Quantity
- 1
- Product Type
- Wireless Access Point
- Wireless LAN Standard
- IEEE 802.11a/b/g/n/ac/ax/be/k/r/v
- Bluetooth Standard
- Bluetooth 5.2
- Network Band
- Tri Band
- Frequency Band
- 2.40 GHz 5 GHz 6 GHz
- Indoor/Outdoor
- Outdoor
