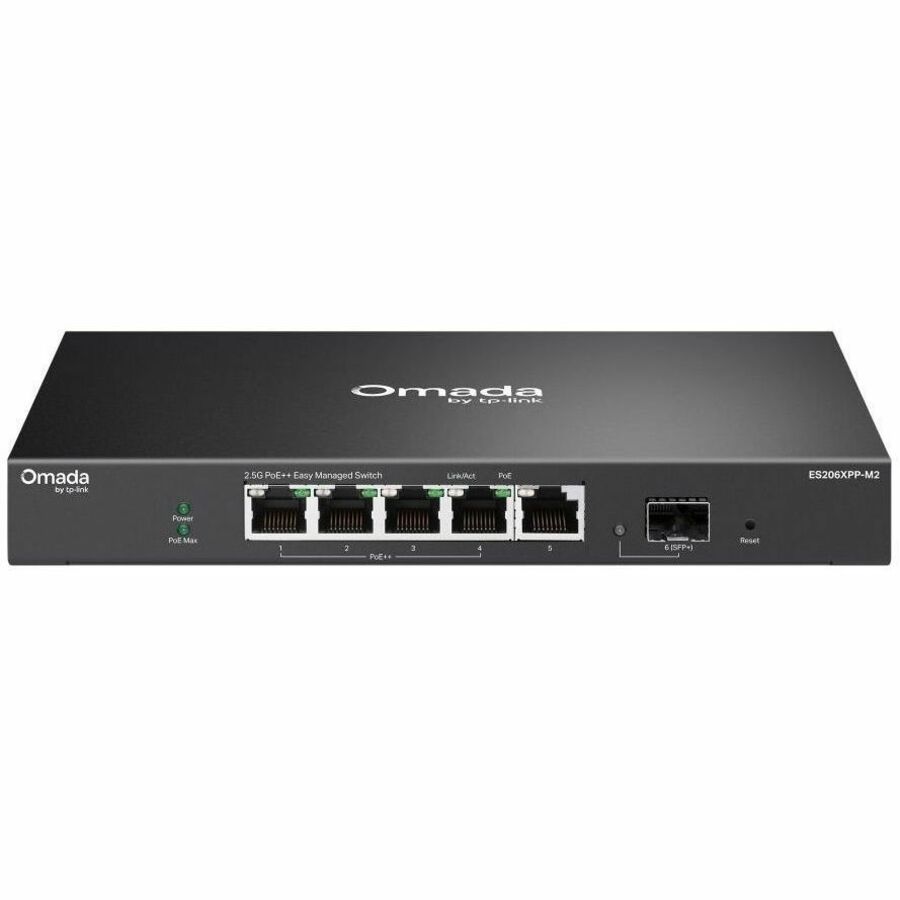

Omada ES206XPP-M2 Ethernet Switch
5 Ports - Manageable - 2.5 Gigabit Ethernet, 10 Gigabit Ethernet - 2.5GBase-T, 10GBase-X - 2 Layer Supported - 120 W PoE Budget - Twisted Pair, Optical Fiber - PoE Ports - Desktop, Wall Mountable
About This Product
Overview
Omada 5-Port 2.5G+1-Port 10G Easy Managed Switch with 4-Port PoE++
ES206XPP-M2
5× 2.5G RJ45 Ports
1× SFP+ Slot
120W Total PoE Budget
Fanless Design for Silent Operation
Easy Centralized Management
Omada App
Traffic Separation
Traffic Prioritization
Power over Ethernet, Flexible Network Deployment
Transmit both data and power via a single cable to other PoE++ devices, without the hassle and cost of installing power cabling. Automatically detect and supply the required power to PoE-enabled devices.
4× 2.5GPoE++RJ45 Ports
Up to90Wper Port
Total120WPoE Budget
Compatible with802.3af/at/btPoE and non-PoE devices
Access Point
Gaming Consoles
4k Video 8K/4K Video
Computer
Unlock the Highest Performance of 2.5G Multi-Gig Bandwidth and Devices
2.5G WiFi7/6 APs
2.5G Gaming Computer
2.5G NAS/Server
PoE Lighting
Works with Omada Central Essentials for Free and Easy Cloud Management
Omada Central Essentials provides free and easy-to-use centralized cloud management and monitoring for the Omada networking system, covering access points, switches, and gateways, ideal for surveillance networks and small businesses.
Cost-Performance Solution | Looking for free, worry-free cloud management for life?
Omada Central Essentials
Lifetime Free Cloud without Additional Fees
On-site work eating up time and resources?
Reduce Maintenance Costs
Manage and Maintain from Anywhere
Multiple Application Scenarios | Wi-Fi Coverage
Works with Wi-Fi 6/7 Access Points
LAN Party
Works with Gaming Consoles and TVs
Wired Connections
Works with Non-PoE Devices such as PCs and Printers
- 5× 2.5 Gbps RJ45 ports (4× 802.3af/at/bt-compliant PoE++)
- 1× 10 Gbps SFP+ slot
- 120W PoE budget, with up to 90W for each PoE port
- Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
- Centralized Cloud Management via the web or the Omada app
- Automatic Loop Prevention, VLAN, Port Isolation, QoS, and IGMP Snooping
- Fanless design for silent operation
- Durable metal casing and desktop/wall mounting design
Quick Specifications
- Product Model
- ES206XPP-M2
- Packaged Quantity
- 1
- Product Type
- Ethernet Switch
- Total Number of Network Ports
- 5
- Network (RJ-45)
- Yes
- Uplink Port
- Yes
- Port/Expansion Slot Details
- 1 x 2.5 Gigabit Ethernet Network 4 x 2.5 Gigabit Ethernet PoE++ 1 x 10 Gigabit Ethernet Expansion Slot
- Media Type Supported
- Twisted Pair Optical Fiber
