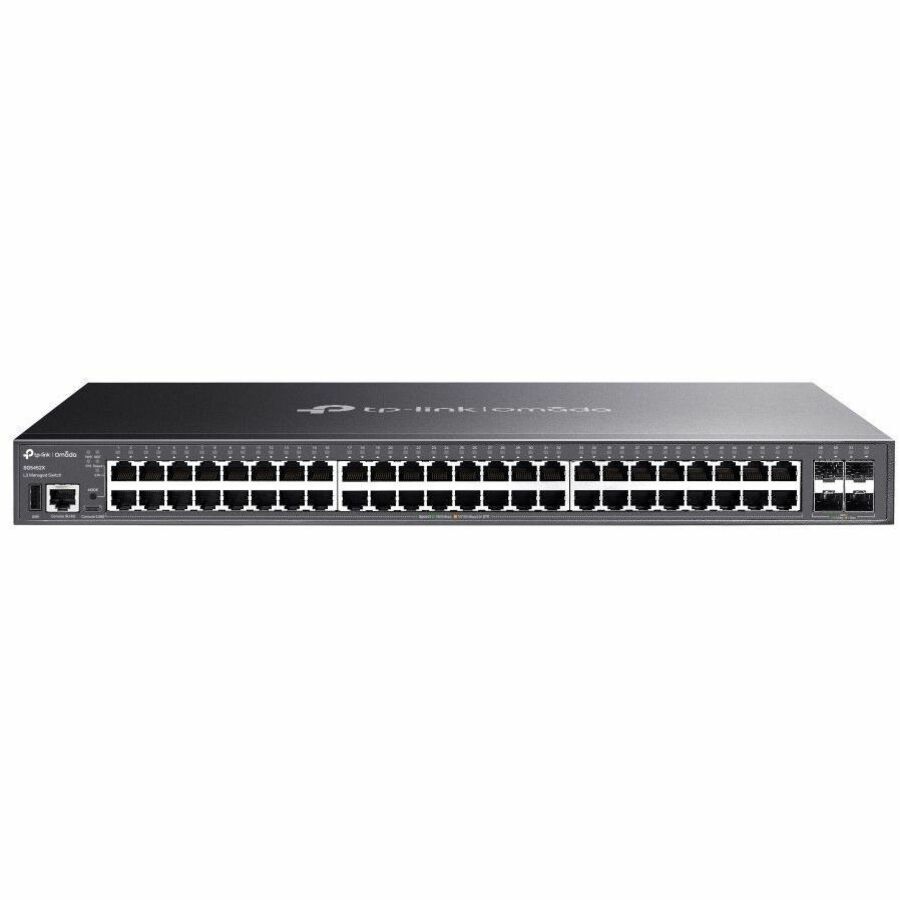

Omada 48-Port Gigabit Stackable Lite L3 Managed Switch with 4× 10G Slots
48 Ports - Manageable - Gigabit Ethernet, 10 Gigabit Ethernet - 10/100/1000Base-T, 10GBase-X - 3 Layer Supported - Modular - 34.30 W Power Consumption - Twisted Pair, Optical Fiber - Rack-mountable, Desktop
About This Product
Overview
What This Product Does
Omada SG5452X is a dependable entry-level L3 switch tailored for the access layer, featuring L3 routing, fast 10 Gbps wired speeds, and stacking options. It includes 48× gigabit RJ45 ports, 4× 10 Gbps SFP+ slots, physical stacking ability, and centralized management. Integrated with strong security and extensive management features, the SG5452X offers a reliable networking solution for SMEs, and ISPs.
High-speed Connectivity and Powerful Stacking
48× gigabit RJ45 ports and 4× 10 Gbps SFP+ slots provide up to 176 Gbps switching capacity per unit. Up to 4 units of physical stacking empower the networking structure with built-in redundancy and performance.
Abundant Layer 3 Capabilities
Comes with abundant Layer 3 routing protocols that support a scalable network. Static Routing, RIP, OSPF, DHCP Server, and DHCP Relay are supported.
Highly Available
ERPS (Ethernet Ring Protection Switching) ensures rapid protection and recovery in ring topologies, which is essential for maintaining network uptime in medium business environments.
Enhanced Security Functions
Defend against a range of network threats with ACL support (IPv4 & IPv6), Dynamic ARP Inspection, IEEE 802.1X, MAB, Port Security, and Secure Shell.
Omada SDN
Integration into the Omada system brings centralized cloud management and a series of management features such as Zero-Touch Provisioning (ZTP). The Omada Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and gateways, providing 100% centralized cloud management-all controlled from a single interface.
Apart from the ability to be centrally managed via the web or the Omada app, SG5452X is also easy to manage via an intuitive web-based Graphical User Interface (GUI) or an industry-standard Command Line Interface (CLI). For both management methods, traffic is protected through SSL or SSH encryption. SNMP (v1/v2c/v3) and RMON support enable the switch to be polled for valuable status information and to send traps for abnormal events.
- Ethernet Switch supports network continuity by maintaining data transmission during operation
- Features 48 networking ports to support the connection requirements of larger workgroups using wired infrastructure
- Gigabit Ethernet ports support higher network data rates than standard Ethernet connections
- Layer 3 switching support enables structured traffic management without altering established network architecture
- Rack?mountable design supports installation within standard equipment racks to accommodate organized hardware placement
- Management capability enables control over network setup and configuration according to operational requirements
- Twisted pair cable support enables cost?efficient network connections for data transmission across distances
- Built?in power supply supports internal components by providing required operating voltage
- Allows connection between standard Ethernet ports to support network extension without changing existing cabling
- Stack port supports interconnection with other ethernet switch units within a stack
Quick Specifications
- Product Model
- SG5452X
- Packaged Quantity
- 1
- Product Type
- Ethernet Switch
- Features
- Fanless DHCP Snooping Zero-Touch Provisioning (ZTP)
- Total Number of Network Ports
- 48
- Network (RJ-45)
- Yes
- Uplink Port
- Yes
- Modular
- Yes
