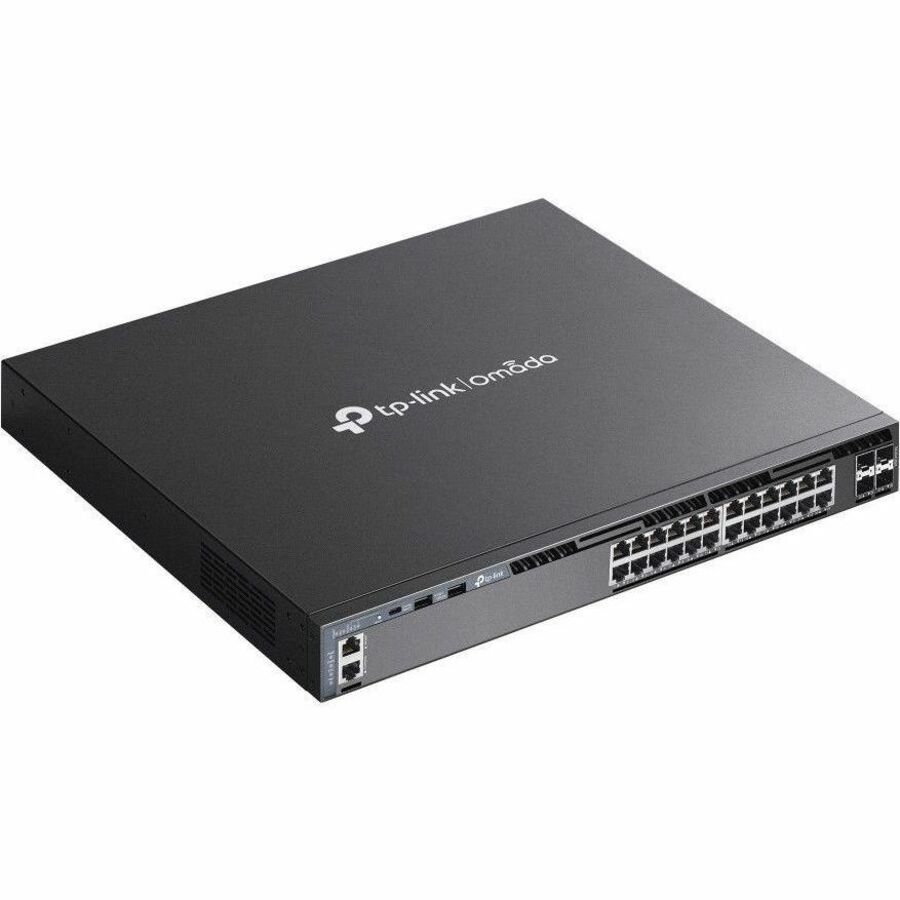

Omada 24-Port Gigabit Stackable L3 Managed Switch with 4 10G Slots

Manufacturer: TP-LINK Technologies Co., Ltd
Mfr. Part: SG6428X

24 Ports - Manageable - Ethernet, 10 Gigabit Ethernet - 10/100/1000Base-T, 10GBase-X - 28.40 W Power Consumption - Twisted Pair, Optical Fiber - PoE Ports - 1U - Rack-mountable

Omada 24-Port Gigabit Stackable L3 Managed Switch with 4 10G Slots

About This Product

Overview

  • 24× Gigabit RJ45 ports and 4× 10 Gbps SFP+ slots
  • 128 Gbps switching capacity per unit
  • Physical stacking for built-in redundancy and performance
  • L3 features: RIP, OSPF, ECMP, VRRP, PIM-DM, DHCP Server/Relay
  • Security Strategies: ACL, Port Security, DoS Defend, 802.1X
  • Highly Available with two internal fixed power supplies, VRRP, and ERPS
  • Centralized cloud management via the Omada SDN controller
  • Standalone management via web, CLI, SNMP, and RMON
  • Layer 3 Switch supports reliable network connectivity based on defined switching or bridging functions
  • Features 24 networking ports to support the connection requirements of larger workgroups using wired infrastructure
  • Ethernet connections support basic network data transfer rates within defined technical limits
  • Rack?mountable design supports installation within standard equipment racks to accommodate organized hardware placement
  • Management functionality enables centralized control to support efficient configuration and operational oversight
  • Twisted pair cable support enables cost?efficient network connections for data transmission across distances
  • Built?in power supply supports internal components by providing required operating voltage
  • Layer 3 Switch for enterprise applications supports increases in network capacity with minimal configuration effort
  • Cascade connections to other network devices through the uplink port to extend a local area network topology
  • Stack port supports expansion of network capacity through stacked device connectivity

Quick Specifications

Product Model
SG6428X
Product Type
Layer 3 Switch
Total Number of Network Ports
24
Network (RJ-45)
Yes
Uplink Port
Yes
Stack Port
Yes
Port/Expansion Slot Details
24 × 10/100/1000BASE-T RJ45 Network Ports 4 × 10G SFP+ Expansion Port 1 × RJ45 Management Port 1 × RJ45 Console Port 2 × USB 2.0 Ports
Media Type Supported
Twisted Pair Optical Fiber
