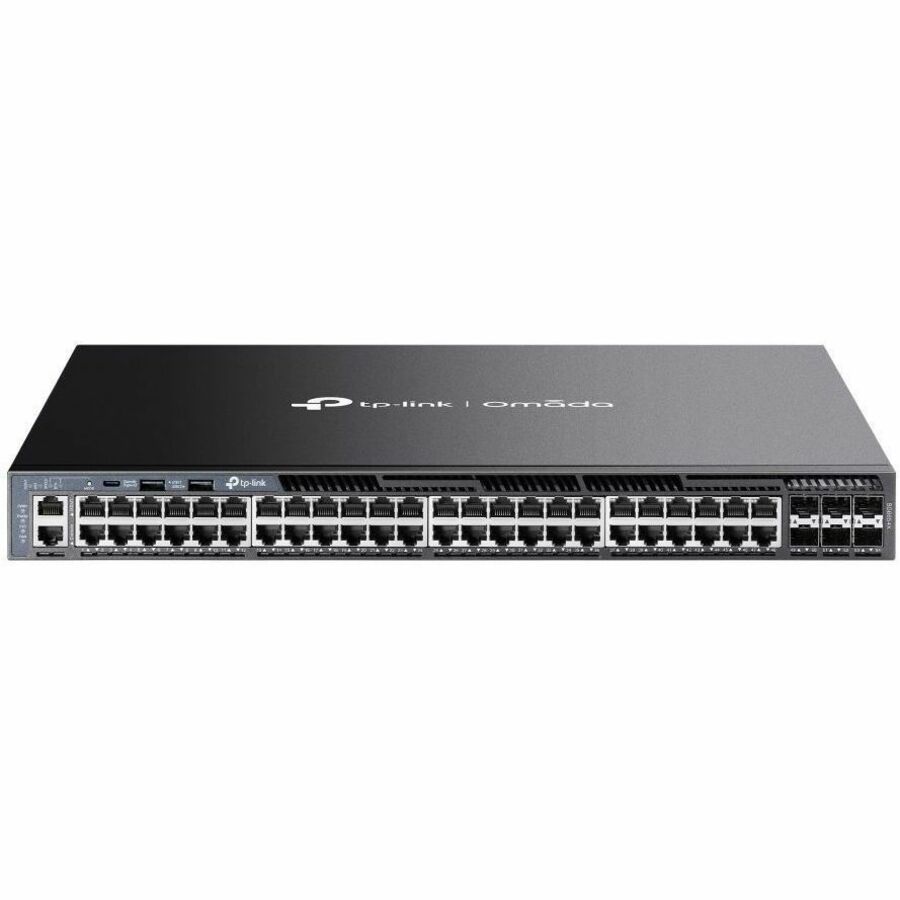

Omada 48-Port Gigabit Stackable L3 Managed Switch with 6 10G Slots
48 Ports - Manageable - Gigabit Ethernet, 10 Gigabit Ethernet - 10/100/1000Base-T, 10GBase-X - 3 Layer Supported - 39.80 W Power Consumption - Twisted Pair, Optical Fiber - 1U - Rack-mountable
About This Product
Overview
What This Product Does
Omada SG6654X, a L3 managed switch, offers L3 routing, swift 10 Gbps wired speed, stacking, and redundant power supplies, catering to convergence layer demands. It comes with 48× gigabit RJ45 ports, 6× 10 Gbps SFP+ slots, and physical stacking. Integrated with robust security and comprehensive management features, this switch ensures reliable performance for SMB, enterprise, and ISP networks.
High-speed Connectivity and Powerful Stacking
48× Gigabit RJ45 ports and 6× 10 Gbps SFP+ slots provide up to 216 Gbps switching capacity per unit. Up to 4 units of physical stacking with up to 864 Gbps switching capacity empower the networking structure with built-in redundancy and performance.
Abundant Layer 3 Capabilities
Comes with abundant Layer 3 routing protocols that support a scalable network. Static Routing, RIP, OSPF, ECMP, VRRP, DHCP Server, and DHCP Relay are supported. PIM-DM multicast routing protocol guarantees efficient routing for multicast groups.
Highly Available
Internal fixed redundant power supplies and VRRP make it an ideal choice for reliable networking architecture. ERPS supports rapid protection and recovery in a ring topology.
Enhanced Security Functions
Defend against a range of network threats with ACL support (IPv4 & IPv6), Dynamic ARP Inspection, IEEE 802.1X, MAB, Port Security, and Secure Shell.
Omada SDN
Integration into the Omada system brings centralized cloud management and a series of management features such as Zero-Touch Provisioning (ZTP).* The Omada Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers, providing 100% centralized cloud management-all controlled from a single interface.
Apart from the ability to be centrally managed via the web or the Omada app, SG6654X is also easy to manage via an intuitive web-based Graphical User Interface (GUI) or an industry-standard Command Line Interface (CLI). For both management methods, traffic is protected through SSL or SSH encryption. SNMP (v1/v2c/v3) and RMON support enable the switch to be polled for valuable status information and to send traps for abnormal events.
- Layer 3 Switch supports structured network connectivity for general data communication needs
- Features 48 networking ports to support deployment of larger wired network configurations across connected devices
- Gigabit Ethernet supports higher uplink data rates compared to standard Ethernet server connections
- Layer 3 switching support enables structured traffic management without altering established network architecture
- Rack?mountable design supports installation within standard equipment racks to accommodate organized hardware placement
- Management capability enables control over network setup and configuration according to operational requirements
- Twisted pair cable support enables cost?efficient network connections for data transmission across distances
- Built?in power supply supports internal components by providing required operating voltage
- Available in black color to support integration within different installation spaces
- Allows connection between standard Ethernet ports to support network extension without changing existing cabling
Quick Specifications
- Product Model
- SG6654X
- Product Type
- Layer 3 Switch
- Total Number of Network Ports
- 48
- Network (RJ-45)
- Yes
- Uplink Port
- Yes
- Stack Port
- Yes
- Port/Expansion Slot Details
- 48 × 10/100/1000BASE-T RJ-45 Network Ports 6 × 10 Gigabit SFP+ Expansion Slots 1 × RJ45 Console Port 1 × USB Type C 1 × RJ-45 Management Port 2 x USB Port
- Media Type Supported
- Twisted Pair Optical Fiber
