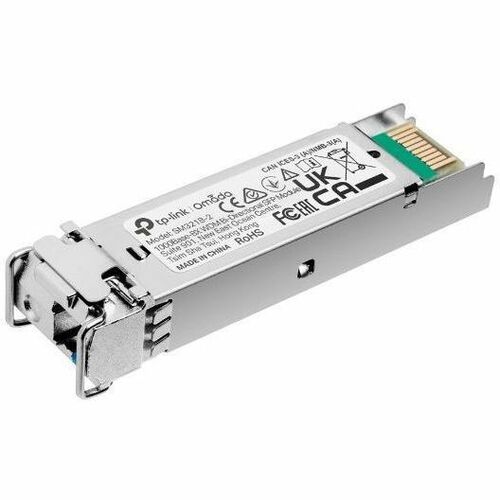

TP-Link Omada 1000Base-BX WDM Bi-Directional SFP Module
For Data Networking, Optical Network - 1 x LC 1000Base-BX Simplex Network - Optical Fiber - Single-mode - Gigabit Ethernet - 1000Base-BX, 1000Base-BiDi - 1.25 Gbit/s - 2 km Maximum Distance - Hot-swappable
About This Product
Overview
What This Product Does
TP-Link´s SM321B-2 (TL-SM321B-2) is developed in accordance with the Small Form Pluggable Multi-Source Agreement (SFP-MSA). As a WDM Bi-Directional optical transceiver, SM321B-2 (TL-SM321B-2) uses an integrated LC Bi-Directional optical interface connector and the data link is up to 2 km in 9/125 µm SMF (Single-Mode Fiber).
Also, SM321B-2 (TL-SM321B-2) incorporates the Digital Diagnostic Monitoring (DDM) feature which is compatible with SFF-8472. DDM supports real-time monitoring of the transceiver, and shows parameters including the transceiver current which transmits/receives optical power and operating temperature.
TP-Link's SM321B-2 (TL-SM321B-2) is used for short-and medium distance fiber network in practice, and it provides fast and stable gigabit fiber connection for switches, routers, servers, etc.
- Adopts the latest standard 1000Base-BX
- Up to 2 km transmission distance in 9/125 µm SMF (Single-Mode Fiber)
- Compatible with Small Form Pluggable Multi-Source Agreement (SFP-MSA)
- Supports Digital Diagnostic Monitoring (DDM)
- Supports Hot Swap
Quick Specifications
- Product Line
- Omada
- Product Model
- SM321B-2
- Product Type
- SFP (mini-GBIC)
- Application/Usage
- Data Networking Optical Network
- Total Number of Ports
- 1
- Connector Type
- LC
- Interfaces/Ports Details
- 1 x LC 1000Base-BX Simplex Network
- Media Type Supported
- Optical Fiber
