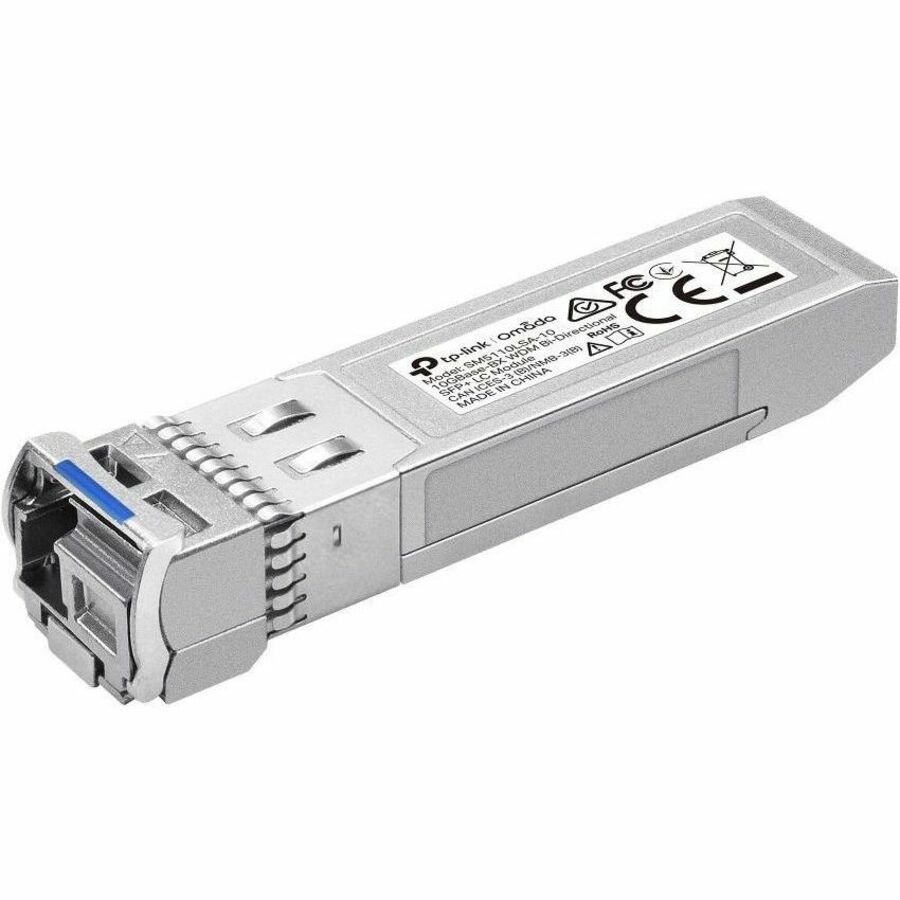

Omada 10GBase-BX WDM Bi-Directional SFP+ LC Module
Manufacturer: TP-LINK Technologies Co., Ltd
Mfr. Part: SM5110LSA-10
For Data Networking, Optical Network - 1 x LC/UPC 10GBase-BX BiDi Simplex Network - Optical Fiber - 9/125 µm - 1330 nm, 1270 nm Wavelength - Single-mode - 10 Gigabit Ethernet - 10GBase-BX BiDi - 10.31 Gbit/s - 10 km Maximum Distance - Hot-swappable, Hot-pluggable
About This Product
Overview
What This Product Does
The SM5110LSA-10 is designed to extend transmission distance up to 10km with a maximum rate of 10Gbps. It is a single-mode SFP+ transceiver that supports bi-directional data transmission, which is cost-saving.
- Supports WDM Bi-Directional technology, using a single strand of fiber, cost saving
- Single mode SFP+ LC Transceiver
- Hot-Pluggable with maximum flexibility
- Supports Digital Diagnostic Monitoring (DDM)
- Compatible with 10G Small Form Pluggable Multi-Source Agreement (SFP+)
- Compatible with switches with 10G ports like SG3428X and SG3452X
Quick Specifications
- Product Model
- SM5110LSA-10
- Product Type
- SFP+
- Application/Usage
- Data Networking Optical Network
- Features
- Digital Diagnostics Monitoring Interface (DDMI)
- Total Number of Ports
- 1
- Connector Type
- LC/UPC
- Interfaces/Ports Details
- 1 x LC/UPC 10GBase-BX BiDi Simplex Network
- Media Type Supported
- Optical Fiber
