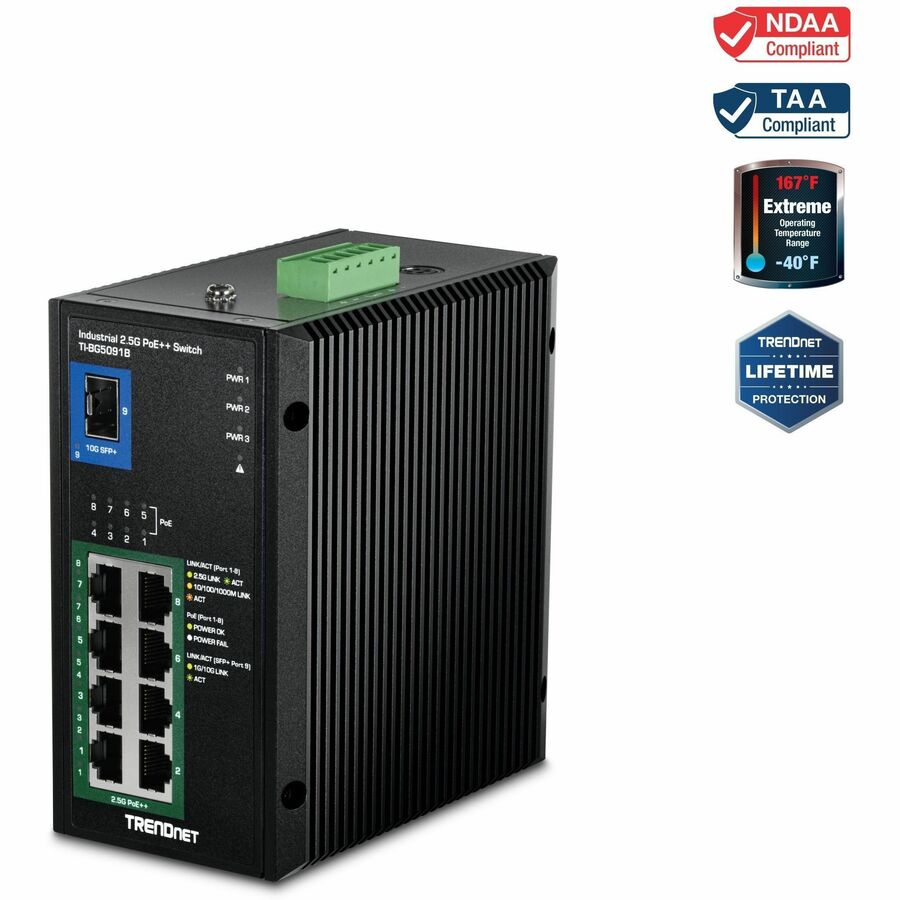

TRENDnet 9-Port Industrial 2.5G DIN-Rail PoE++ Switch with 10G SFP+ Port (24 - 57V), TI BG5091B, 8 x 2.5G PoE++ Ports, 1 x 10G SFP+ Port, 480W PoE, 60Gbps Switch Capacity, Black

Manufacturer: TRENDnet
Mfr. Part: TI-BG5091B

8 Ports - 2.5 Gigabit Ethernet, 10 Gigabit Ethernet, Gigabit Ethernet - 2.5GBase-T, 10GBase-X, 10/100/1000Base-T - 2 Layer Supported - 12.40 W Power Consumption - 480 W PoE Budget - Twisted Pair, Optical Fiber - PoE Ports - Black - DIN Rail Mountable, Wall Mountable

TRENDnet 9-Port Industrial 2.5G DIN-Rail PoE++ Switch with 10G SFP+ Port (24 - 57V), TI BG5091B, 8 x 2.5G PoE++ Ports, 1 x 10G SFP+ Port, 480W PoE, 60Gbps Switch Capacity, Black

About This Product

Overview

TRENDnet's 9-Port Industrial 2.5G DIN-Rail PoE++ Switch with 10G SFP+ Port (24 - 57V), model TI-BG5091B, delivers network connectivity to rugged environments, while saving you on installation costs and setup time using Power over Ethernet technology. The industrial variable voltage switch features a rugged IP50 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating in both high and low temperatures for industrial environments within -40° - 75° C (-40° - 167° F). This adjustable voltage switch features eight 2.5G PoE++ ports, and a 10G SFP+ port for long-distance fiber networking applications.

Installers and integrators can save on equipment costs and reduce installation time with TRENDnet's voltage booster PoE++ switch by delivering up to 95W per port of PoE power and data over existing Ethernet cables. With PoE technology inside this industrial variable voltage switch, users only need one cable to deliver both data and power. The switch also features Fast PoE technology, which minimizes wait time for PoE devices by providing power immediately at boot up. Dual 24 - 57V DC power inputs on this adjustable voltage switch provide redundancy with power failure alarm relay.

  • DEVICE INTERFACE: 8 x 2.5G PoE++ Ports; 1 x 10G SFP+ Port; 60Gbps Switching Capacity; 6-Pin Removable Terminal Block; LED Indicators; DIN-Rail Mount; Wall Mount; Grounding Point
  • POWER SUPPLY SOLD SEPARATELY: Compatible power supplies for this switch (TI-S48048, TI-S24052, 48VDC3000)
  • TRENDnet LIFETIME PROTECTION: We stand by our products. The TI-BG5091B Industrial Switch is secured with Lifetime
  • Manufacturer Protection from TRENDnet.
  • NDAA + TAA COMPLIANT: With NDAA and TAA compliant network switches, you can plan and install the networking solutions that government customers demand today. (U.S. and Canada only)
  • RELIABLE TECH SUPPORT: Our team of advisors, support and tech experts are English speaking, and available for all your needs during normal business hours. We take pride in being there for our customers.
  • POE POWER: Up to a 480W PoE power budget on this industrial variable voltage switch supports up to eight Power over Ethernet devices with PoE (15.4W), PoE+ (30W), or PoE++ (95W) power
  • INDUSTRIAL PROTECTION: Rugged IP50 enclosure with a high degree of vibration and shock resistance, ESD/EMI/surge protection, and a wide operating temperature range of -40° - 75° C (-40°- 167° F).
  • FAST POE: With Fast PoE, the industrial variable voltage switch provides power to a connected PoE device within a few seconds of the switch receiving power-no need to wait for the switch to fully boot up
  • POWER REDUNDANCY: The voltage booster PoE++ switch features dual 24 - 57V DC power inputs for redundancy with overload current protection
  • POWER FAILURE ALERT: Alarm relay is triggered by power failure of primary and/or redundant power

    • More from the Manufacturer

    • 8 x 2.5G PoE++ ports
    • 1 x 10G SFP+ port
    • Up to 480W PoE power budget
    • 60Gbps switching capacity
    • Hardened IP50 rated metal switch
    • Fast PoE minimizes wait time for powering up PoE devices
    • Includes DIN-Rail and wall mounts
    • Extreme operating temperature range of -40° - 75° C (-40° - 167° F)
    • Multiple power inputs for redundancy
    • Alarm output triggered by power failure
    • Power supply sold separately (TI-S48048, TI-S24052, 48VDC3000)

    Quick Specifications

    Product Model
    TI-BG5091B
    Product Type
    Ethernet Switch
    Features
    IP50 Alarm Relay
    Total Number of Network Ports
    8
    Network (RJ-45)
    Yes
    Port/Expansion Slot Details
    8 x 1/2.5 Gigabit Ethernet PoE++ RJ-45 Network Port 1 x 10 Gigabit Ethernet SFP+ Expansion Slot
    Media Type Supported
    Twisted Pair Optical Fiber
    Ethernet Technology
    2.5 Gigabit Ethernet 10 Gigabit Ethernet Gigabit Ethernet
