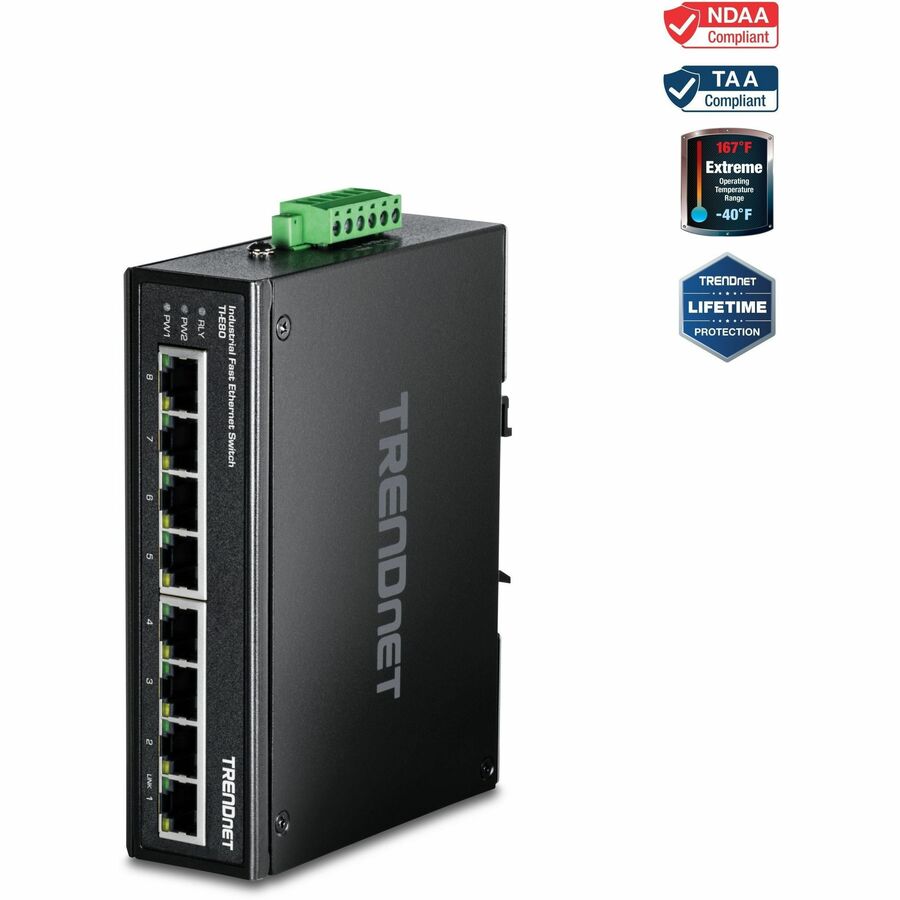

TRENDnet 8-Port Industrial Fast Ethernet DIN-Rail Switch, TIE80, 8 x Fast Ethernet Ports, IP50 Rated, Extreme Temperature Operating Range, 1.6Gbps Switching Capacity, Lifetime Protection

Manufacturer: TRENDnet
Mfr. Part: TI-E80

8-Port Industrial Fast Ethernet DIN-Rail Switch

TRENDnet 8-Port Industrial Fast Ethernet DIN-Rail Switch, TIE80, 8 x Fast Ethernet Ports, IP50 Rated, Extreme Temperature Operating Range, 1.6Gbps Switching Capacity, Lifetime Protection

About This Product

Overview

TRENDnet's 8-Port Industrial Fast Ethernet DIN-Rail Switch, model TI-E80, features a rugged IP50 rated metal enclosure. The industrial Ethernet switch is designed to withstand high levels of vibration and shock, while operating in both low and high temperatures for industrial environments within a -40° - 75° C (-40° - 167° F) extreme temperature range. Redundant power inputs with overload current protection minimizes network downtime.

  • DEVICE INTERFACE: 8 x 10/100Mbps Ports; 4-Pin Removable Terminal Block; LED Indicators
  • TRENDnet LIFETIME PROTECTION: We stand by our products. The TI-E80 8-Port Industrial Switch is secured with Lifetime Manufacturer Protection from TRENDnet.
  • NDAA + TAA COMPLIANT: With NDAA and TAA compliant network switches, you can plan and install the networking solutions that government customers demand today. (U.S. and Canada only)
  • RELIABLE TECH SUPPORT: Our team of advisors, support and tech experts are English speaking, and available for all your needs during normal business hours. We take pride in being there for our customers.
  • FAST ETHERNET PORTS: This industrial hardened switch features eight 10/100Mbps ports for high-speed device connections up to 200Mbps full-duplex per port with 1.6Gbps total switching capacity.
  • INDUSTRIAL HARDENED DESIGN: Equipped with a rugged IP50 rated housing, designed to withstand a high degree of vibration and shock, and operate within an extreme temperature range of -40° - 75° C (-40° - 167° F).
  • DIN RAIL & WALL MOUNTS: IP50 rated metal enclosure on the industrial switch with included DIN-Rail mount and wall mount hardware
  • POWER SUPPLY SOLD SEPARATELY: Use this industrial switch with the compatible power supply
  • Model TI-M6024 (Sold Separately) Input: 12-56V DC; Max. Consumption:2.7W
  • FAULT TOLERANCE: Features redundant power inputs from external power sources and an output alarm relay to indicate the event of input power failure.
  • EASY INSTALLATION: No configuration needed, simply connect network devices to the industrial Ethernet switch with an intuitive guided setup
  • ALARM RELAY: Alarm relay triggered by power failure of primary and / or redundant power
  • REDUNDANT POWER: Dual power inputs provide redundant power with overload current protection

    • More from the Manufacturer

    • 8 x Fast Ethernet ports
    • Hardened IP50 rated metal switch
    • Extreme operating temperature range of - 40° - 75° C ( - 40° - 167° F)
    • Dual power inputs provide redundant power with overload current protection
    • Fanless design for silent operation
    • Alarm relay triggered by power failure
    • 1.6Gbps switching capacity
    • ncludes DIN - Rail mount and wall mount brackets
    • Power supply sold separately (model: TI - M6024)
    • Lifetime Warranty
    • NDAA / TAA compliant (U.S. and Canada only)

    Quick Specifications

    Product Model
    TI-E80
    Product Type
    Ethernet Switch
    Total Number of Network Ports
    8
    Port/Expansion Slot Details
    8 x Fast Ethernet Network
    Media Type Supported
    Twisted Pair
    Ethernet Technology
    Fast Ethernet
    Network Technology
    100Base-X
    Layer Supported
    2
