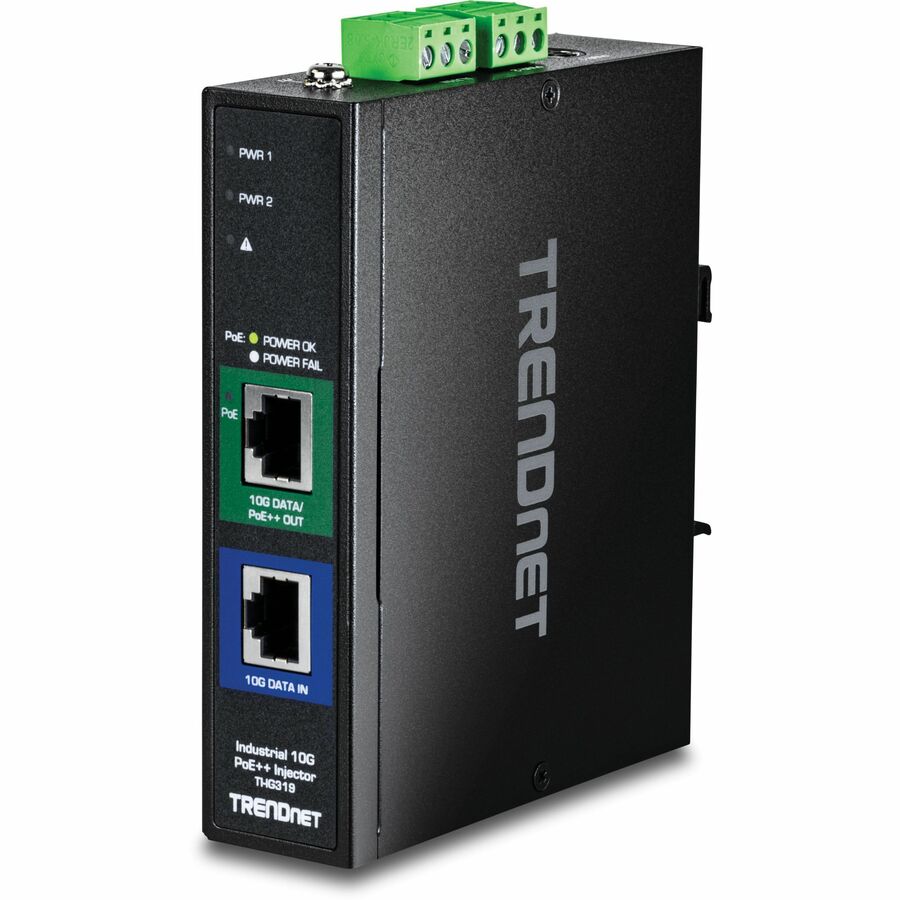

TRENDnet Industrial 10G PoE++ Injector, TI-IG319, 1 x 10 Gigabit PoE++ Port (Data + PoE Out), 1 x 10 Gigabit Port (Data in), Supports PoE (15.4W), PoE+ (30W), NDAA & TAA Compliant
48 V DC, 57 V DC Input - 1 x 10 Gigabit Ethernet Input Port(s) - 1 x 10 Gigabit PoE++ Output Port(s) - 120 W
About This Product
Overview
TRENDnet's Industrial 10G PoE++ Injector, model TI-IG319, allows users to add PoE++ power to a non-PoE switch. Connect the 10G PoE++ injector to a non-PoE switch, and then run an Ethernet cable up to 100 meters (328 ft.) to network a PoE/PoE+/PoE++ device. This multi-gig industrial PoE++ injector supplies up to 120W of power to PoE devices. The fanless design conveniently eliminates operating noise and lowers energy consumption. The industrial 10G injector is equipped with an IP50 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a temperature range of -40° - 75° C (-40° - 167° F) for extreme industrial environments.
PoE++
This industrial 10G PoE++ injector supplies up to 120W of power to a PoE devices.
10G Ports
Features a high-speed 10G port (data in) and a high-speed 10G PoE++ port (data + PoE out)
Industrial Design
IP50 rated metal enclosure with a high degree of vibration and shock resistance, and a extreme operating temperature range of -40° - 75° C (-40° - 167° F).
PoE++
This industrial 10G PoE++ injector supplies up to 120W of power to PoE (IEEE 802.3af), PoE+ (IEEE 802.3at), or PoE++ (IEEE 802.3bt) devices
PoE Distance
Provides a PoE++ network connection up to 100m (328 ft.)
Grounding Point
Grounding point protects equipment from external electrical surges
Industrial Design
Equipped with an IP50 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within an extreme temperature range of -40° - 75° C (-40° - 167° F) for industrial environments
LED Indicators
LED indicators on the industrial 10G PoE++ injector conveys power, alarm, and PoE connectivity
Fanless Design
Fanless design on the industrial 10G PoE++ injector conveniently eliminates operating noise and lowers energy consumption
10G Ports
1 x 10G port (data in) and 1 x 10G PoE++ ports (data + PoE out)
Shock and Vibration Resistant
Rated for shock (EN 60068-2-27), freefall (EN 60068-2-32), and vibration (EN 60068-2-6)
Housing Design
The industrial 10G PoE++ injector features a compact and sturdy metal housing for installation flexibility
- 1 x 10G PoE++ port (Data + PoE out)
- 1 x 10G port (Data in)
- 120W PoE power budget
- Supports PoE (15.4W), PoE+ (30W), and PoE++ (95W) devices
- Uses IEEE 802.3af, IEEE 802.3at, and IEEE 802.3bt industry PoE standards for greater device interoperability
- Network a PoE device located up to 100m (328 ft.)
- Fanless design eliminates operating noise and lowers energy consumption
- Extreme operating temperature range -40° - 75° C (-40° - 167° F)
- Includes DIN-Rail mount and wall mount
- Power supply sold separately (model: TI-S15052)
- NDAA / TAA compliant (U.S. and Canada only)
Quick Specifications
- Product Model
- TI-IG319
- Packaged Quantity
- 20 / Case
- Product Type
- PoE++ 10G Injector
- Protection Type
- ESD Protection Surge Protection
- Input Voltage
- 48 V DC 57 V DC
- Maximum Output Power
- 120 W
- Input Ports
- 1 x 10 Gigabit Ethernet
- Output Ports
- 1 x 10 Gigabit PoE++
