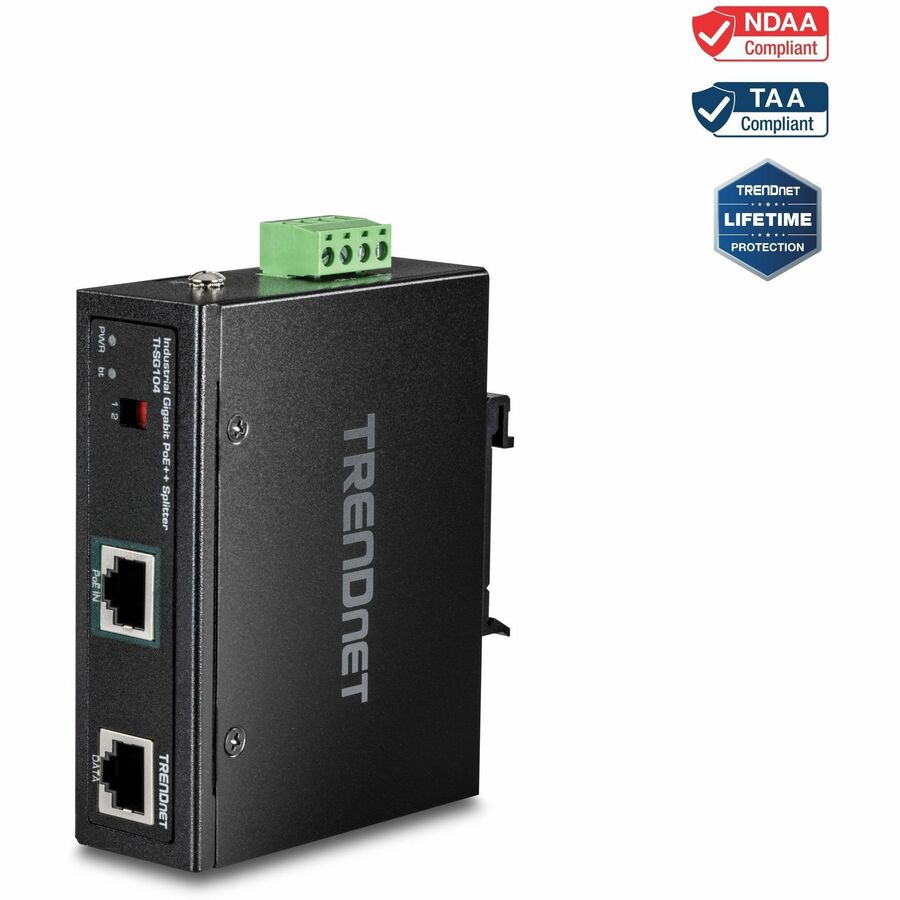

TRENDnet Industrial Gigabit PoE++ Splitter, TI-SG104, Extreme Temperature Range Ready,-40° - 75° C (-40° - 167°F), Power up to 2 Devices with PoE++ up to 100m (328ft.), Black

Manufacturer: TRENDnet
Mfr. Part: TI-SG104

Industrial Gigabit PoE++ Splitter

TRENDnet Industrial Gigabit PoE++ Splitter, TI-SG104, Extreme Temperature Range Ready,-40° - 75° C (-40° - 167°F), Power up to 2 Devices with PoE++ up to 100m (328ft.), Black

About This Product

Overview

TRENDnet's Industrial Gigabit PoE++ Splitter, model TI-SG104, networks a non-PoE device by using a Gigabit PoE++ connection and splitting it into separate power and gigabit data sources. The industrial gigabit PoE++ splitter can power to up to two devices from a single PoE source. A convenient DIP switch on the PoE++ splitter adjusts output power to 12V, 16V, 24V, or 48V to match varying power requirements for non-PoE devices. The PoE++ splitter's dual DC power output provides greater device compatibility.DEVICE INTERFACE: 1 x Gigabit Port; 1 x Gigabit PoE++ Port; 4-pin Removable Terminal Block (Dual DC Output); Adjustable output power DIP Switch (48V, 24V, 16V, 12V)

  • POE++ POWERED: No power adapter necessary; the PoE++ splitter takes a PoE++ network connection, and splits power and data into separate connections to network a non-PoE device with power up to 100m (328ft.).
  • ADJUSTABLE VOLTAGE OUTPUT: Convenient DIP switch adjusts voltage output to 12V (2.3A), 16V (2.3A), 24V (2.3A) or 48V (1.5A) to match non-PoE device power requirements.
  • DUAL DC POWER OUTPUT TERMINAL BLOCK: The PoE++ splitter includes a dual DC power output terminal block, powering for up to two devices
  • EXTREME OPERATING TEMPURATURE: Designed for industrial environments with a wide operating temperature range of -40° - 75° C (-40° - 167° F)
  • WALL MOUNTABLE: The splitter comes with a wall mount kit that accommodates most installation scenarios
  • DIN-RAIL MOUNTABLE: The PoE++ splitter comes with a DIN-Rail mount kit that fits a standard TS35 DIN-Rails
  • POWER: Input: 15.4W/30W/60W/90W PoE power; Max. consumption: 1W (splitter only)
  • Max. combined DC Output: 48V (1.5A), 24V (2.3A), 16V (2.3A), 12V (2.3A)
  • NDAA / TAA compliant (U.S. and Canada only)

    • More from the Manufacturer

    • Power a non-PoE device up to 100m (328 ft.) away from PSE
    • Splits a gigabit 90W PoE++ signal into separate power and data sources
    • A single PoE++ source can power up to two devices
    • Adjustable voltage output supports 12V, 16V, 24V or 48V devices
    • Extreme operating temperature range -40 to 75 °C (-40 to 167 °F)
    • IEEE 802.3bt compliant
    • For best performance pair with TRENDnet PoE++ switches or injectors
    • NDAA / TAA compliant (U.S. and Canada only)

    Quick Specifications

    Product Model
    TI-SG104
    Product Type
    PoE Splitter
    Protection Type
    Surge Protection ESD Protection
    Minimum Output Voltage
    12 V DC
    Maximum Output Voltage
    48 V DC
    Input Ports
    1 x UPoE
    Output Ports
    1 x Gigabit Ethernet
    Form Factor
    DIN Rail/Wall Mountable
