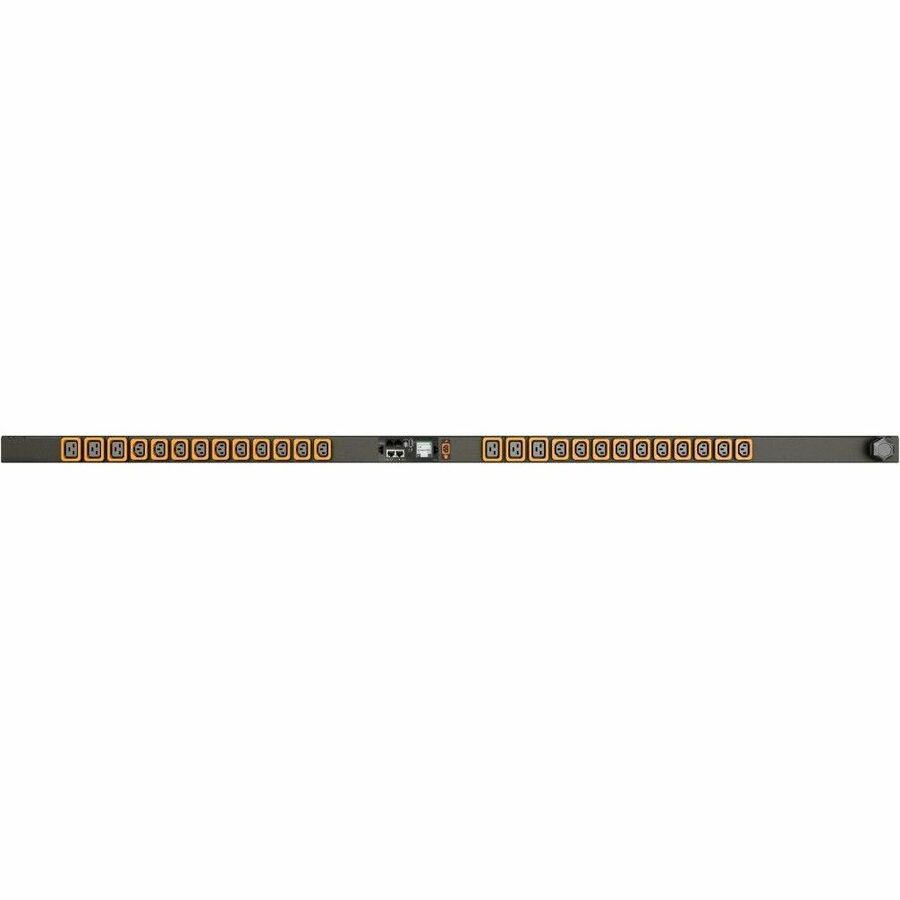

Vertiv Geist rPDU MN05M4B0-26PJ68-2TL6A0A10-S 30-Outlets PDU

Manufacturer: Vertiv
Mfr. Part: VP4N20A5

Monitored - NEMA L6-20P - 24 x U-Lock IEC 60320 C13, 6 x U-Lock IEC 60320 C19 - 230 V AC - Network (RJ-45) - 10 ft Cord Length - Vertical - Rack-mountable - TAA Compliant

Vertiv Geist rPDU MN05M4B0-26PJ68-2TL6A0A10-S 30-Outlets PDU

About This Product

Overview

Upgradeable Unit Level EC Monitored rPDUs provide reliable power distribution to critical IT equipment while delivering a comprehensive view of input level power usage via remote network access. Includes environmental monitoring capabilities to obtain realtime environmental metrics. Upgrade the hot-swappable monitoring device on select units to leverage new technologies and accommodate changing business needs.

Benefits

  • Reliable power distribution with local and remote power monitoring options offer quick access to critical power usage information to evaluate energy usage trends and maximize uptime
  • Environmental monitoring capabilities with the addition of optional environmental sensors ensure users have critical infrastructure data at their fingertips to prevent climate-related equipment failure and system downtime.
  • Fault-Tolerant Daisy Chaining with RSTP simplifies intelligent rPDU connectivity and ensures data is reported even when a breakin the network chain occurs. Supports up to 40 rPDUs.
  • Every unit is 100% tested for reliability and functionality.
  • Daisy-chain up to 50 devices on a single IP address and reduce deployment time with self-configuration of downstream devices.
  • Provide circuit protection and easy configuration for trouble-free access
  • With monitored PDU, you can remotely monitor single-or three-phase voltage easily
  • U-Lock IEC 60320 C13 receptacle type to ensure maximum usability and reliable power output
  • NEMA L6-20P plug/connector type for efficient connectivity and feasible power output
  • 230 V AC input voltage for maximum feasibility and added productivity
  • 208 V AC output voltage for optimal performance with maximum feasibility

Quick Specifications

Product Series
rPDU
Product Model
MN05M4B0-26PJ68-2TL6A0A10-S
Product Type
PDU
PDU Type
Monitored
Plug/Connector Type
NEMA L6-20P
Plug/Connector Detail
1 x NEMA L6-20P
Receptacle Type
U-Lock IEC 60320 C13 U-Lock IEC 60320 C19
Receptacle Detail
24 x U-Lock IEC 60320 C13 6 x U-Lock IEC 60320 C19
