Vertiv Geist Monitored RPDU with Next-Generation IMD| 60A| 208V DELTA| 0U Rack| (12) IEC C13| (12) IEC C19 Receptacles| 3P+E (IP44)| VP4N60AF
Manufacturer: Vertiv
Mfr. Part: VP4N60AF
17.2kW Power Capacity| Redundant Power-Sharing Port| High-Visibility LCD | Internal Orientation Sensor| Security Enhanced| Interchangeable Monitoring Device| UL Listed| TAA-Compliant | RoHS Certified| 3-Year Warranty Which Extends to 5-Year Warranty if Registered Within 120 Days of Purchase
About This Product
Overview

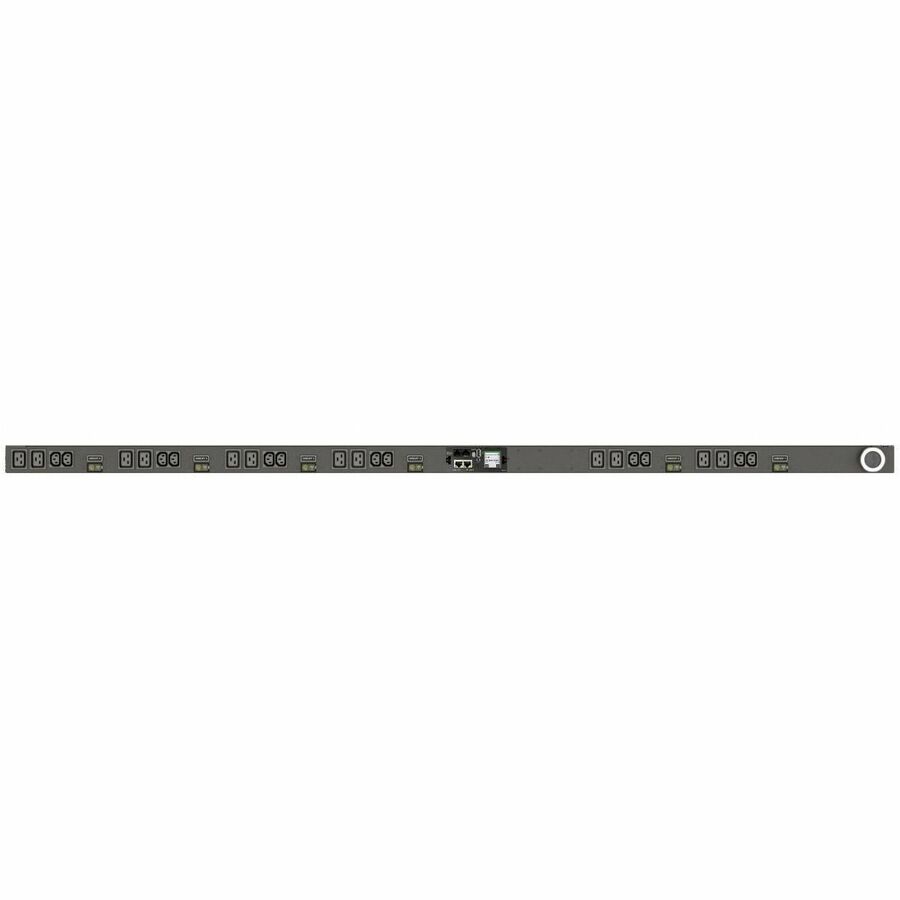

The Vertiv Geist Monitored Rack PDU VP4N60AF is a 60A, 208V DELTA, 0U vertical rack power distribution unit with input and per Phase power monitoring. It has (12) IEC C13 and (12) IEC C19 receptacles and a 3P+E (IP44) plug providing 17.2kW of power capacity. This device offers quick access to critical power usage information down to the device level to evaluate energy usage trends and maximize uptime. It is integrated with the Vertiv Geist Next-Generation IMD which displays power data via its 128x128 high-visibility LCD. It has an internal sensor that intelligently adjusts the orientation based on horizontal or vertical installation. This includes a redundant power-sharing port that connects two IMDs in the rack and provides backup power in case of power loss. Enhanced security with a secure boot is added to the device to help ensure data and operations are protected. The units are UL-listed, TAA-compliant, RoHS certified, and individually tested for functionality and reliability.
- The Monitored RPDU provides access to power usage data so you can see trends and maximize uptime
- VP4N60AF is a vertical rack-mount PDU with (12) IEC C13 and (12) IEC C19 receptacles
- Vertiv Geist Next-Generation IMD has a 128x128 high-contrast LCD for monitoring data
- Helps ensure that data and operations are protected with the enhanced security features
- Vertiv Geist rPDUs are individually tested, UL-Listed, TAA-Compliant, and RoHS certified
Quick Specifications
- Product Line
- Geist Upgradeable
- Product Type
- PDU
- PDU Type
- Monitored
- Phase
- Three Phase
- Plug/Connector Type
- 3P+E (IP44)
- Plug/Connector Detail
- 1 x 3P+E (IP44)
- Receptacle Type
- IEC 60320 C13 IEC 60320 C19
- Receptacle Detail
- 12 x IEC 60320 C13 12 x IEC 60320 C19
