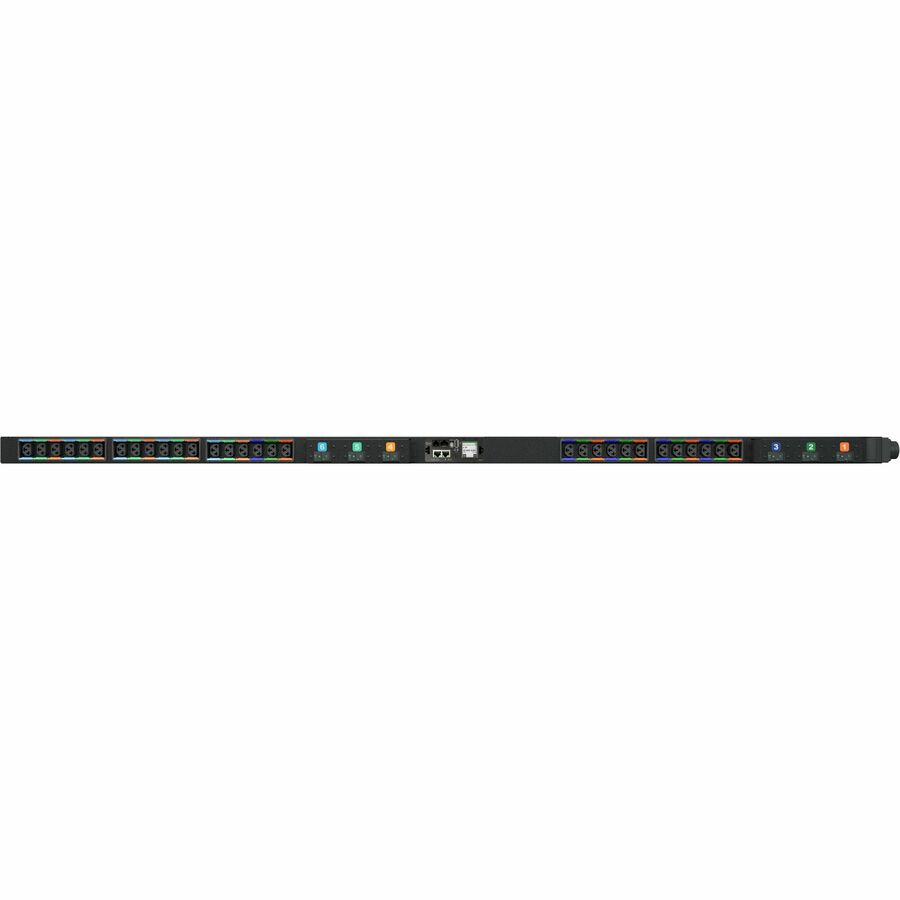

Vertiv Geist Universal Rack PDU with Next-Generation IMD| 32A-63A| 22kW Power Capacity| 208V-415V| (30) Combination C13/C19 outlets | VP4UV0A2
Manufacturer: Vertiv
Mfr. Part: VP4UV0A2
Redundant Power-Sharing Port | High-Visibility LCD | Internal Orientation Sensor | Security Enhanced | Interchangeable Monitoring Device | Dual Listed (UL/CE) | TAA-Compliant | RoHS Certified | 3-Year Warranty Which Extends to 5-Year Warranty if Registered Within 120 Days of Purchase
About This Product
Overview
The Vertiv Geist VP4UV0A2 is a versatile rack power distribution unit with a universal input that supports common AC power configurations. It has (30) Combination C13/C19 outlets providing 22kW of power capacity. This unit can accommodate input power ranging from 32A-63A and 208V-415V in both single-phase and three-phase configurations. It helps simplify the rPDU procurement process since users can use a single model to work with different power sources. It is integrated with the Vertiv Geist Next Generation Interchangeable Monitoring Device (IMD). It has a 128x128 high-contrast LCD that displays the power usage. It features enhanced security with a secure boot that helps protect data and operations. It also has a redundant power-sharing port that connects two IMDs in the rack and provides backup power in case of power loss. The units are Dual Listed (UL/CE), TAA-Compliant, and individually tested for functionality and reliability.
- The VP4UV0A2 UPDU supports 32A-63A and 208V-415V of power in both 1Phase and 3Phase configurations
- The U-Lock outlets help lessen the risk of downtime caused by accidental cord disconnection
- Vertiv Geist Next-Generation IMD has a 128x128 high-contrast LCD for monitoring data
- Helps ensure that data and operations are protected with the enhanced security features
- Vertiv Geist rPDUs are individually tested, Dual Listed (UL/CE), TAA-Compliant, and RoHS certified
Quick Specifications
- Product Line
- Geist Upgradeable
- Product Model
- DU03E4B1-30CF17-2S02A9K00-S-A
- Product Type
- PDU
- PDU Type
- Monitored
- Phase
- Single Phase/Three Phase
- Plug/Connector Type
- Universal Input
- Receptacle Type
- Combination C13/C19
- Receptacle Detail
- 30 x Combination C13/C19
