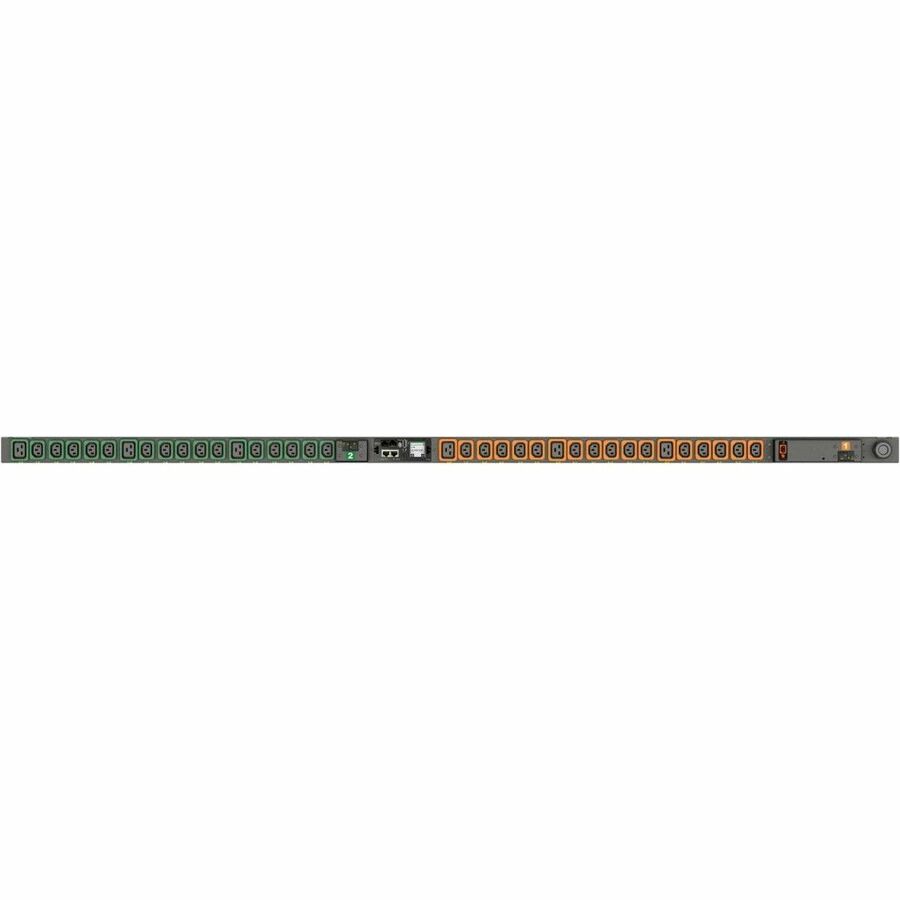

Vertiv Geist rPDU MNS5MGW1-36PT68-3TL6A0A10-S 36-Outlets PDU

Manufacturer: Vertiv
Mfr. Part: VP5N30AN

Switched - NEMA L6-30P - 30 x U-Lock IEC 60320 C13, 6 x U-Lock IEC 60320 C19 - 230 V AC - Overcurrent Protection, Double Pole - Network (RJ-45) - 10 ft Cord Length - 0U - Vertical - Rack-mountable - TAA Compliant

Vertiv Geist rPDU MNS5MGW1-36PT68-3TL6A0A10-S 36-Outlets PDU

About This Product

Overview

Upgradeable Switched Unit Level Monitored EC rPDUs provide reliable power distribution to critical IT equipment while delivering individual outlet level control and a comprehensive view of input power usage via remote network access. Includes environmental monitoring capabilities to obtain realtime environmental metrics. Upgrade the hot-swappable monitoring device on select units to leverage new technologies and accommodate changing business needs.

Benefits

  • Remotely reboot outlets to power cycle unresponsive IT equipment or increase runtime of critical equipment upon power failure with outlet-level control.
  • Reliable power distribution with local and remote power monitoring options offer quick access to critical power usage information to evaluate energy usage trends and maximize uptime.
  • Environmental monitoring capabilities with the addition of optional environmental sensors ensure users have critical infrastructure data at their fingertips to prevent climate-related equipment failure and system downtime.
  • Fault-Tolerant Daisy Chaining with RSTP simplifies intelligent rPDU connectivity and ensures data is reported even when a break in the network chain occurs. Supports up to 40 rPDUs.
  • Daisy-chain up to 50 devices on a single IP address and reduce deployment time with selfconfiguration of downstream devices.
  • PDU allows power to be more efficiently distributed and controlled
  • With switched PDU, remotely monitor, connect or disconnect data center loads
  • U-Lock IEC 60320 C13 receptacle type to ensure maximum productivity with added feasibility
  • NEMA L6-30P plug/connector type for reliable, productive connectivity and optimal power output
  • 230 V AC input voltage for maximum feasibility and added productivity
  • 208 V AC output voltage for better reliance and maximum usability

Quick Specifications

Product Series
rPDU
Product Model
MNS5MGW1-36PT68-3TL6A0A10-S
Product Type
PDU
PDU Type
Switched
Plug/Connector Type
NEMA L6-30P
Plug/Connector Detail
1 x NEMA L6-30P
Receptacle Type
U-Lock IEC 60320 C13 U-Lock IEC 60320 C19
Receptacle Detail
30 x U-Lock IEC 60320 C13 6 x U-Lock IEC 60320 C19
