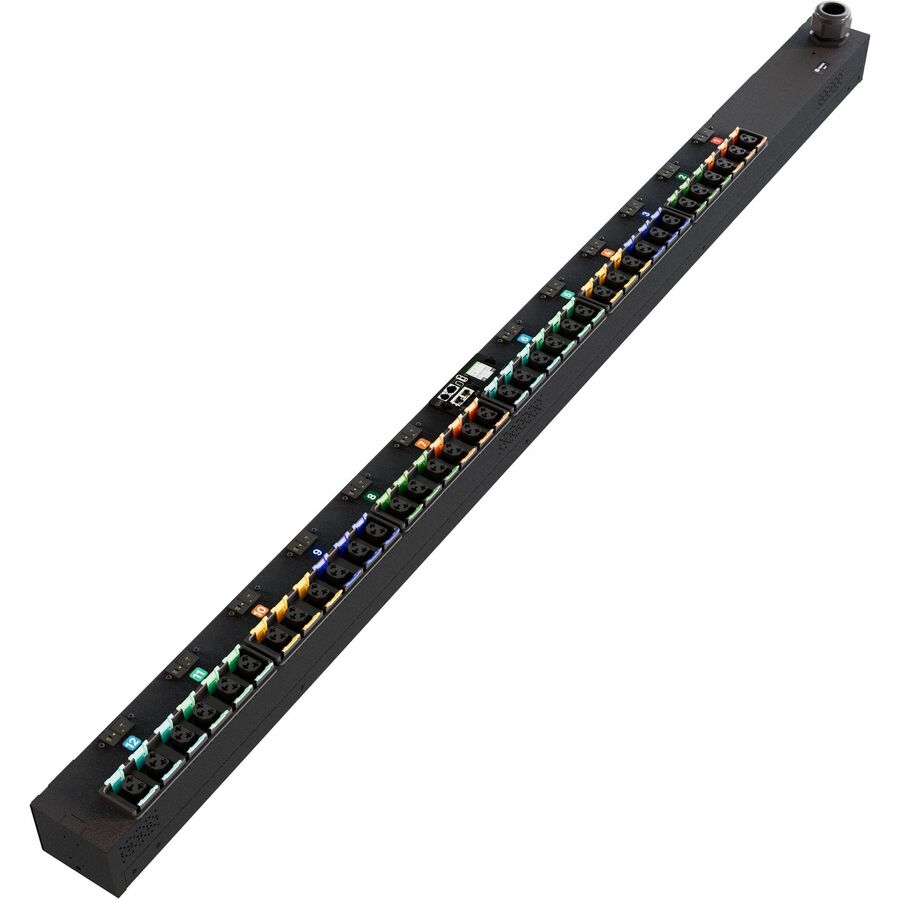

Vertiv PowerIT VP6U60A2 Upgradeable Outlet Level Monitoring HD rPDU, Vertical, Three Phase, 36 Combination C13/C19 Outlets, 60/63A, 240/415V WYE, 0U
Manufacturer: Vertiv
Mfr. Part: VP6U60A2
Rack power distribution unit, 43.4kW, 3P+N+E (IP44) plug, TAA Compliance, RoHS, China RoHS, UL-listed, CE-marked, 3-year warranty extending to 5-year warranty if registered within 120 days of purchase
About This Product
Overview
The Vertiv PowerIT Monitored Outlet Level High Density Rack Power Distribution Unit (rPDU) VP6U60A2 is an upgradeable, 60/63A, 240/415V WYE, 0U, vertical rPDU with input and outlet level monitoring. It has 36 Combination C13/C19 outlets that provide the flexibility to connect C14 and C20 plugs in the same outlet interchangeably. It also has a 3P+N+E (IP44) plug with 43.4kW of power capacity. The hot-swappable Interchangeable Monitoring Device (IMD-5M) has ports for serial communication and environmental monitoring, while the dual gigabit ethernet ports simplify the management of multiple PDUs with fault-tolerant daisy chaining or IP aggregation capabilities. This model is UL-listed and CE-marked, meeting an important requirement for data centers. It is also RoHS-certified and individually tested to ensure your network is powered by a reliable power distribution unit. Plus, it includes a three-year warranty that is extendable to five years if registered within 120 days of purchase.
- Seamlessly upgrade your rPDU with the hot-swappable Interchangeable Monitoring Device (IMD-5M)
- Connect both C14 and C20 plugs interchangeably via the Combination C13/C19 receptacle
- Secure connections with the high-retention, color-coded receptacle that is P-Lock cable-compatible
- Streamline deployment of up to 50 devices on a single IP address with Vertiv Intelligence Director
- Comes with a three-year warranty, extendable to five years if registered within 120 days of purchase
Quick Specifications
- Product Line
- Geist Upgradeable
- Product Series
- G
- Product Type
- PDU
- PDU Type
- Monitored
- Phase
- Three Phase
- Plug/Connector Type
- 3P+N+E (IP44)
- Plug/Connector Detail
- 1 x 3P+N+E (IP44)
- Receptacle Type
- Combination C13/C19
