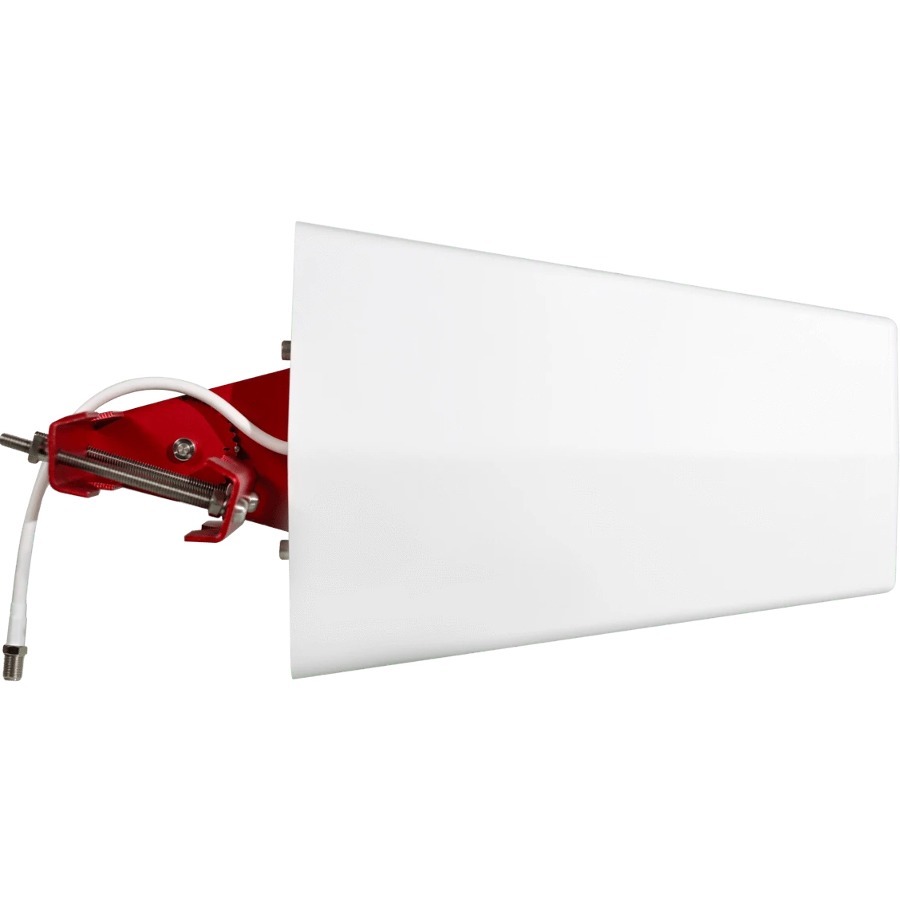

WeBoost Home Outside Directional Antenna
Manufacturer: Wilson Electronics
Mfr. Part: 314445
806 MHz to 960 MHz, 1710 MHz to 1880 MHz, 1900 MHz to 2200 MHz, 2200 MHz to 2700 MHz, 698 MHz to 806 MHz - 9.2 dBi - Cellular Network, OutdoorPole/Wall - Directional - F Connector Connector
About This Product
Overview
The Home Outside Directional Antenna is a proprietary antenna made exclusively for weBoost Home boosters; known for its compact design, high performance, and all-weather operation.
With its tilt-swivel mounting bracket, the Home Outside Directional Antenna installs securely to exterior walls; as well as poles or rooftop vent pipes from 1.25" to 2" wide. This bracket enables targeting of specific towers to help optimize reception. Works on all available cell signal bands.
- Works on all worldwide cellular bands for voice and data: LTE/CDMA/GSM/UMTS/AWS
- High performance for weBoost cellular repeater/boosters
- Designed for building exterior installation; direct at cell tower for best signal
- High efficiency and compact design
- UV stable white sealed radome
- Rugged and waterproof for all weather operation
- Simple install kit with tilt/swivel bracket for 1.0" to 3" diameter pipe/mast
- 2-year warranty
Quick Specifications
- Product Line
- Home Outside
- Product Model
- 314445
- Product Type
- Antenna
- Directivity
- Directional
- Operating Frequency Range
- 806 MHz to 960 MHz 1710 MHz to 1880 MHz 1900 MHz to 2200 MHz 2200 MHz to 2700 MHz 698 MHz to 806 MHz
- Antenna Gain (Isotropic)
- 9.2 dBi
- Connector Type
- F Connector
- Height
- 8.50"
