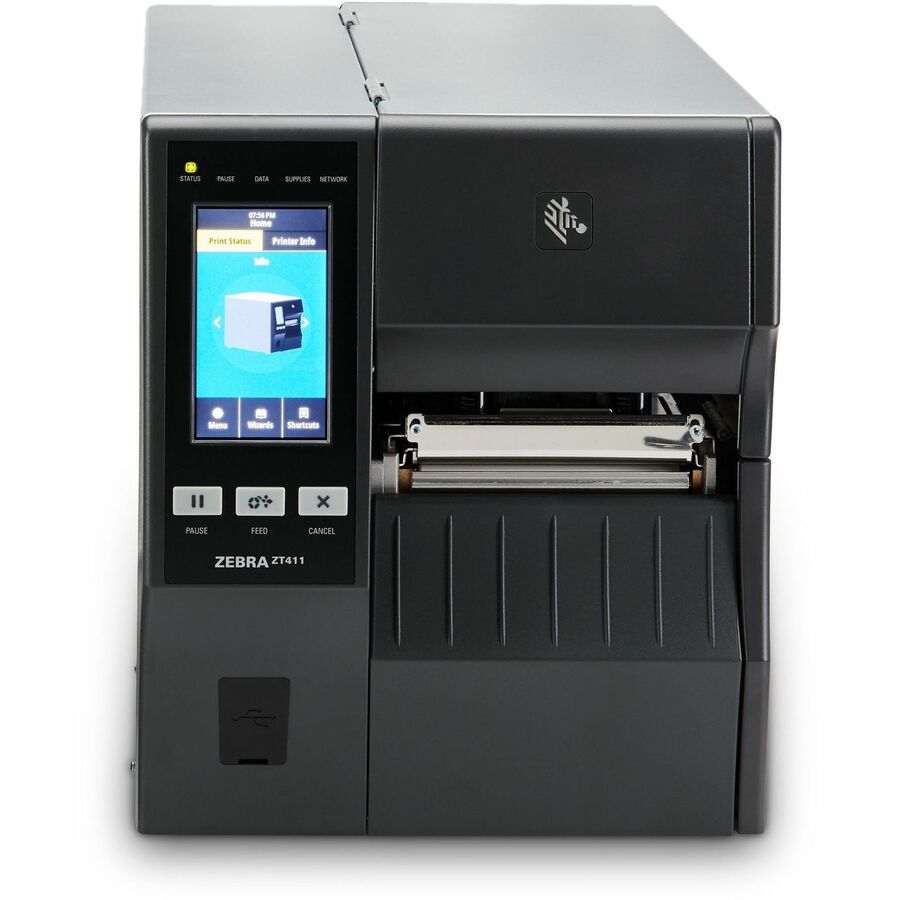

Zebra ZT411 Industrial, Manufacturing, Transportation & Logistic, Retail, Healthcare Direct Thermal Printer - Monochrome - Label Print - Fast Ethernet - USB - USB Host - Serial - Bluetooth 4.1 - Wireless LAN - UK, EU, US, China, JP, TW, BR, AUS, AR, IS
Manufacturer: Zebra Technologies Corporation
Mfr. Part: DS-ZT496P1126226
4.3" LCD Display Screen - Peel Facility - 13.08 ft Print Length x 4.09" Print Width - 14.02 in/s Mono - 203 dpi - 4.09" Label Width x 39" Label Length - ZBI 2.0, ZPL, ZPL II, EPL II, EPL, XML Emulation
About This Product
Overview
Specifications are provided for reference and are based on testing the ZT411™ printer using genuine Zebra® supplies. Results may vary in actual application settings or when using other-than-recommended Zebra supplies. Zebra recommends always qualifying any application with thorough testing
Standard Features | Printing
- Thermal transfer and direct thermal printing
- Thin film printhead with E3™ Element Energy™ Equalizer for superior print quality
- 203 dpi print resolution (8 dots / mm)
- Print speed per second up to 14" (356 mm / second)
Communication
- USB 2.0, high speed
- RS-232 Serial (RS-232C with DB9F connector; Configurable baud rate (2400 - 115,200kB), parity, and data bits. Stop bits at 1 or 2; Software (XON/XOFF), hardware (DTR/DSR or RTS/CTS) communication handshake protocols)
- 10/100 Ethernet: Supports networks internally integrated option that enables the use of Webview and Alert features
- Bluetooth® 4.1 (including Apple®)
- Dual USB Host
Operation
- 4.3-inch color touch display with intuitive menu for quick operation and settings management
- Bi-colored status LEDs for quick printer status
- ARM Cortex A7 processor
- 256 MB RAM memory (8 MB User Available)
- 512 MB Flash memory (64 MB User Available)
- Print Touch™ application
- Link-OS®-enabled
- Auto-switching 100-240V power supply
- ENERGY STAR® qualified
- Printhead element out detection
Media Support
- Dual media sensors - transmissive and reflective
- 3" media supply hanger
- Auto calibration when printer is turned on or when printhead is closed
Design
- Easy, side-loading metal print mechanism
- Tool-less printhead and platen replacement
- Metal media cover with enlarged clear viewing window
- Robust-gold user touch points indicating key adjustments
- Bi-fold media door decreasing overall operating space by 35%
Firmware
- Resident ZPL®, ZPL II® and EPL™ programming languages, selectable through software or front panel
- XML-Enabled Printing - allows XML communications for barcode label printing eliminating license fees and printer server hardware while lowering customization and programming costs
- Direct Thermal Printer provides you with all the features that you need to print quickly and easily
- 203 maximum print resolution (dpi) for your convenience and easy usage
- Produce high-quality documents with this monochrome printer to increase your productivity
- Delivers high-speed, hassle-free labeling solution for your business needs
- Share the printer easily and efficiently with various other systems with the help of built-in Ethernet port
- Print your documents from the comfort of your couch with Wireless LAN connectivity enabled
- 4.09" maximum label width to easily accommodate your needs with added productivity
- 39" maximum label length for dependable, desired results
- Supports label media type for better reliance and maximum usability
- Direct Thermal Printer with industrial application/usage provides dependable printing solution with added productivity
Quick Specifications
- Product Model
- ZT411
- Product Type
- Direct Thermal Printer
- Recommended Use
- Label Print
- Print Color Capability
- Monochrome
- Maximum Mono Print Speed
- 14.02 in/s
- Maximum Print Resolution (dpi)
- 203
- Maximum Print Length
- 13.08 ft
- Maximum Print Width
- 4.09"
